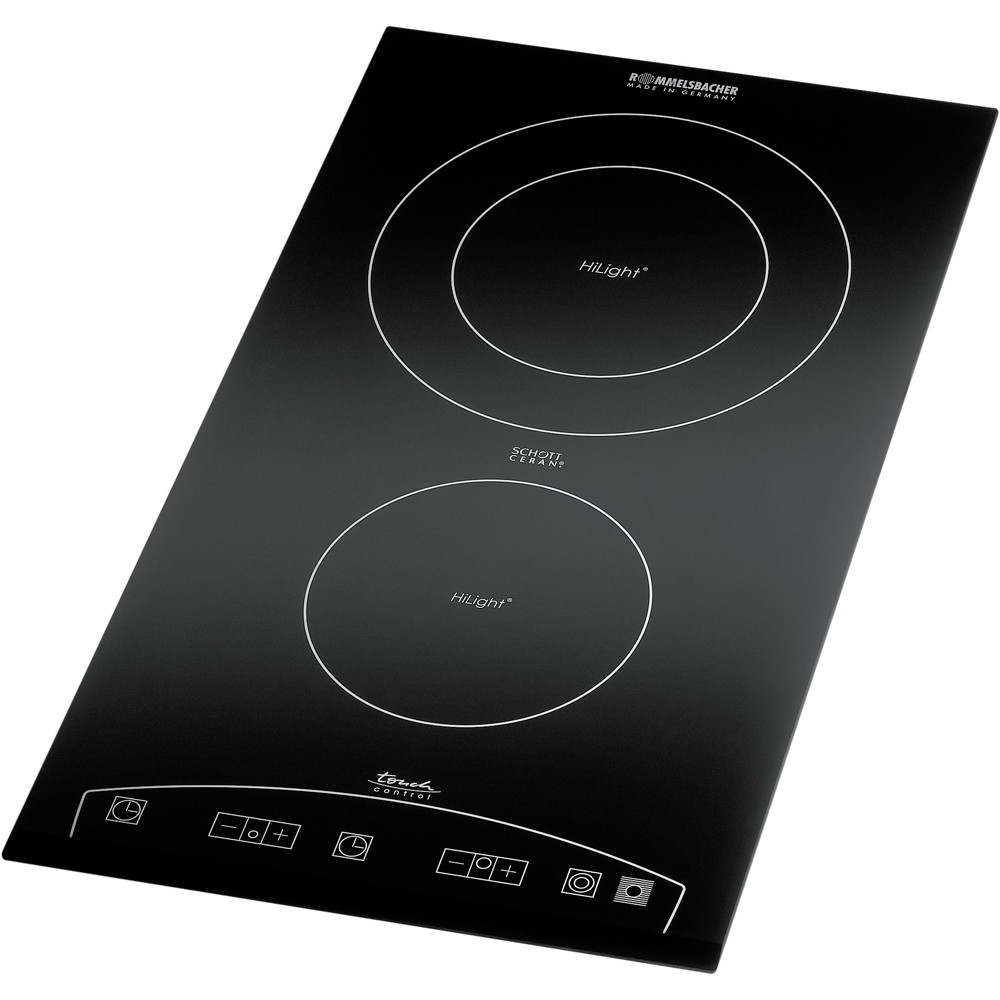

BUILT-IN HOB EBC 3477/TC DOMINO Ceran®

  • frameless, with front-sided faceting
  • heating zone 145 mm Ø 1200 W
  • two-circuit heating zone 180/220 mm Ø 2200 W
  • Schott Ceran® cooktop
  • HiLight® heating elements, Touch Control regulation, automatic temperature control
  • timer 1 – 99 min.
  • 2 residual heat and 1 ON/OFF indicator
  • mounting dimensions: 270 x 500 x 75 mm



For installation into every kitchen worktop: whether in the office, small households or holiday flats. High-quality built-in hobs, either in stainless steel design, or with genuine Schott Ceran® cooktop to satisfy the demanding. Technology ranging from HiLight® to induction. Delivery scope includes a complete installation kit and a power cord with safety plug.

Additional Information

Type EBC 3477/TC
Product Colour black
Power Output 230 V 3400 W
Item weight 5,36 kg
Dimensions 28,80 x 52,00 x 7,00 cm
Hob-type HiLight® radiant heaters
Cooking surface 2 cooking zones: 1-circuit heating element 145 mm Ø, 1200 W / 2-circuit heating element 140/210 mm Ø, 1000/2200 W
Cooking zones 2
Cooking zone 1 145 mm Ø, 1200 W
Cooking zone 2 140/210 mm Ø, 1000/2200 W
Assembly Dimension 270 x 500 x 69 mm
Special Features frameless, all-over cooking surface made of genuine Schott Ceran®, attractive, durable and easy to clean
EAN 4001797514004
Description type
Operation Manual pdf
Data Sheet pdf

If you have any questions, please contact our customer service.

Here you will find a selection of suitable recipes:
The device in action - can be seen at:

How do I clean the hob?
First let coarse food residues on the glass ceramic soak with a wet cloth, then remove with a suitable glass scraper (commercially available). For further cleaning use special cleaning agents or some water with detergent. Never use abrasives or oven sprays on the glass surface, since these will cause scratches in the material.

What measurements does the recess gap in the work top need to have? What distances towards other furniture have to be left to ensure safe operation?
An exact plan for installation with all measurements and all necessary steps can be found in the instruction manual. The manual can be downloaded under "Downloads".
